Basic Info

Model No.: 2BMYFQ-6D

Application: Corn, Peanut, Beans

Application Field: Agriculture

Planting Machine Type: Seedling Planting Machine

Fertilizing Machine Type: Pneumatic Wide Fertilizer

Power Source: Tractor

Sowing: Precision Seeder

Certification: CE, ISO9001:2008, SGS, GMP, QS, UL

Condition: New

Name: 6 Row Corn Seeder

Function: Cultivation , Fertilize ,seeder

Seeds: Corn, Soybean , Sorghum , Sugarbeet

Working Efficiency: High Efficiency

Working Width(mm): 210-480cm

MOQ: 1sets

Packing: Iron Cage

Advantage: High Performance

Feature: Multi-functional

Working Speed(km/h): 4-8 Km/h

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

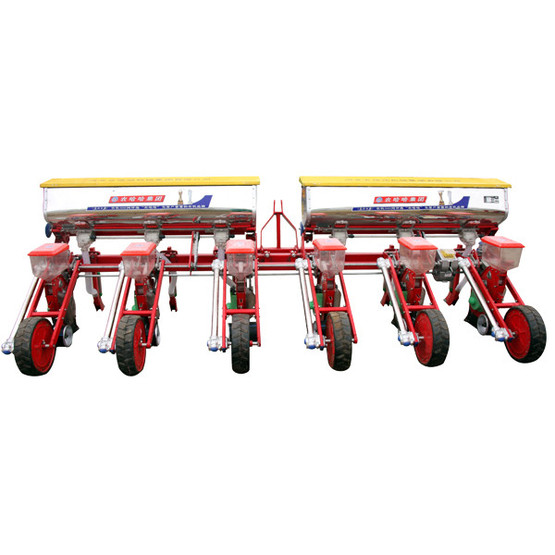

Agricultural air-suction precision 6 row seeders with fertilizer:

We supply air-suction precision 6 row seeders with fertilizer can accomplish the ditching, fertilizing, stubble breaking, sowing, ridging task, ect. in one operation. The seed fertilizer planter for precision seeding of corn, soybeans, sorghum, sugar beet, and other crops. Sowing and fertilizing simultaneously with good efficiency and high germination rate. This precision seeder and planter has an efficient operating speed of 4-8 km/h.

It is the perfect planter to solve the problems of modern agriculture in which maximum efficiency must be combined with minimum cost.

Parameters of air-suction precision 6 row seeders with fertilizer:

1. Model: 2BMYFQ-6D

2. Dimension: 2000X5900X1800 mm

3. Weight: 1425 kg

4. Matched Tractor: 100~120 hp

5. Working width: 210~480 cm

6. Planting rows/fertilizing rows: 6/6

7. Row spacing: 40~70 cm

8. Working depth: 0~100 mm

9.  Fertilizer hopper capacity: 2X200 kg

10. Seed hopper capacity: 6X40 L

11. Plant space adjustment type: Double chain sprocket adjustment

12.  Fertilizer opener type: Single disc type

13. Seeding opener form: Double disc type

14. Linkage: Three-point mounted

15. Optimum operating speed: 4~8 km/h

16. Work efficiency: 2~4 hm²/h

Features of air-suction precision 6 row seeders with fertilizer:

1* 40 L Seed Hopper

2* Singulator lever for adjusting supply of seeds in the selection chamber

3* High strength aluminium case

4* Seeding depth adjustment

5* Support depth wheels with the balance system allowing perfect copy of uneven ground which provides a constant seeding depth

6* V shaped rear roller for pressing down and closing seed beds

7* Disc type coulter

8* Ripple shaped trash remover

9* Sowing monomer quick release system

10* Quick-release cardan drive with acoustic warning

11* Self lubrication bushing

12* Coulter pressure adjustment by handle attached to spring

13* Seed meter is easy to open or close and seed disc is convenient to replace

Applications of air-suction precision 6 row seeders with fertilizer:
