Heavy duty tractor pto driven rotary power harrow
Model No.: 1BQ-2.0
Application Field: Agriculture
Power Source: Tractor
Machinery Type: Arable Machinery
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Certification: SGS, ECE, EU, CE
Operation: Continuous Running Operation
Working Efficiency: High Efficiency
Packing: Iron Cage
Usage: Farm Cultivate
Advantage: Flexible Operation
Feature: Match Tractor
Name: Tractor Power Harrow
Application: Agricultural Rotary Harrow
Working Width: 200 Cm
Working Depth: 20~28 Cm
Packaging: Strong exporting standard packages. Iron frame ( As your requirements )
Productivity: 1000 set/sets per month
Place of Origin: China (Mainland)
Supply Ability: 1000 set/sets per month

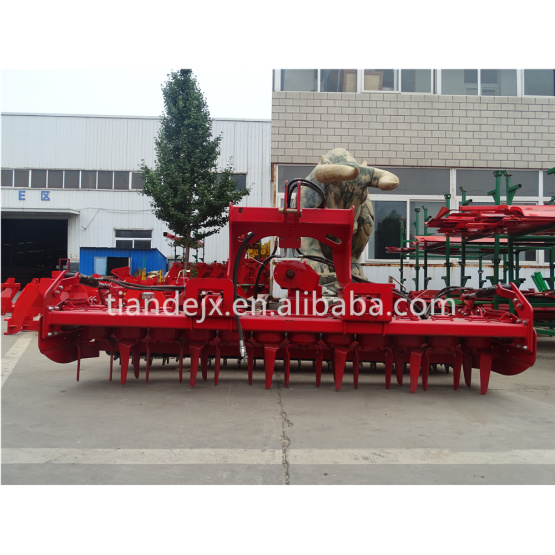

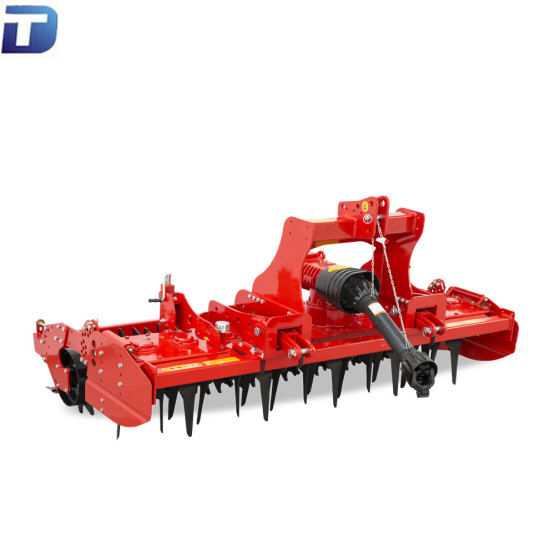

Rotary power harrow:
Tractor mounted power driven harrow output power through tractor pto shaft, forcefully drive working parts to work. Complete loose soil, broken soil, level and suppress land simultaneously. Which is a new type, new structure land preparing machine. Its feature are compact structure, high work efficiency, and strong adaptability etc. After work, plough layer isn`t disorderly, topsoil is finely-divided, flat and keep moisture, form good condition to realize precise planting.
The middle-duty and heavy-duty harrow to adapt different work condition, and meet demand of more different horsepower tractor. Also optional fast articulated device to match with different precise planting machine for combine working, so reduce farming time and save cost to improve work efficiency.
Parameters of rotary power harrow:
1. Model: 1BQ-2.0
2. Dimension: 1527X2210X1220 mm
3. Weight: 1050 kg
4. Matched Tractor: 90~140 hp
5. Working depth: 20~30 cm
6. Blades Qty: 8×2
7. Working width: 200 cm
8. Working efficiency: 1-1.4 hm2/h
9. Linkage: Three-point mounted
Features of rotary power harrow:

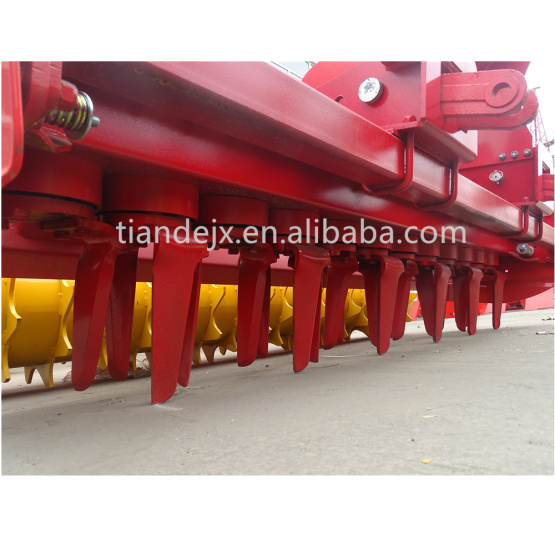

1. High strength war-resistant boron steel blade adapts to varies of soil property, and easy to replace.
2. Replaceable gear mechanism design to meet different post-power output speed selection.
3. Adjust work depth through hack roller side pin, can optional hydraulic parts for auxiliary adjustment.
4. Optional multiple hack rollers, adapt to different work condition and soil property.
