Basic Info

Model No.: 7C-1.5H

Working Efficiency: High Efficiency

MOQ: 1sets

Advantage: Flexible Operation

Drive Type: Match Tractor

Packing: Iron Frame Package

Feature: Higher Performace

Application: Farm dump trailer

Color: Customized

Usage: Farm trailer For Transportation

Name: Walking Farm tractor trailer

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

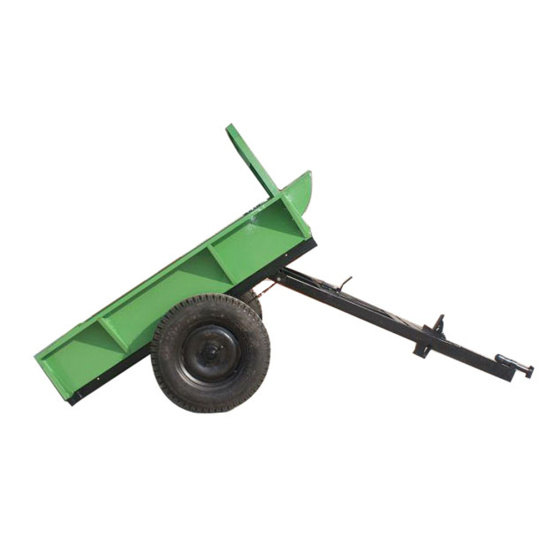

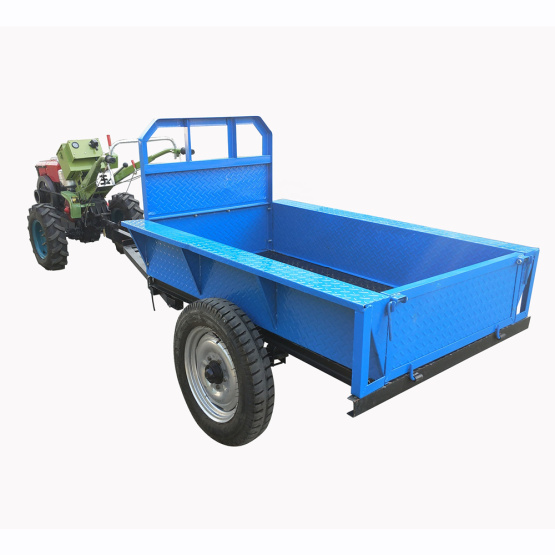

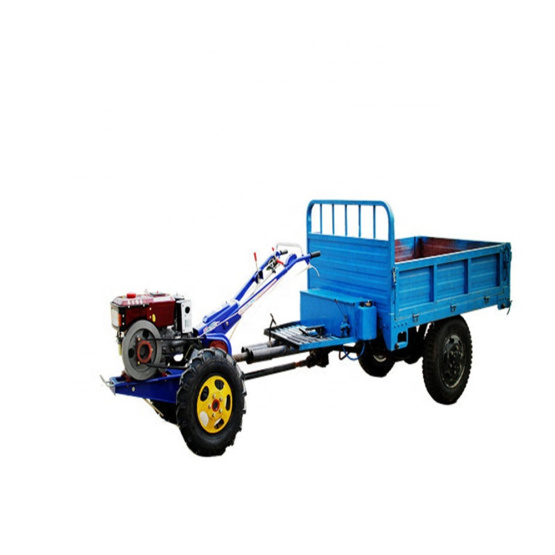

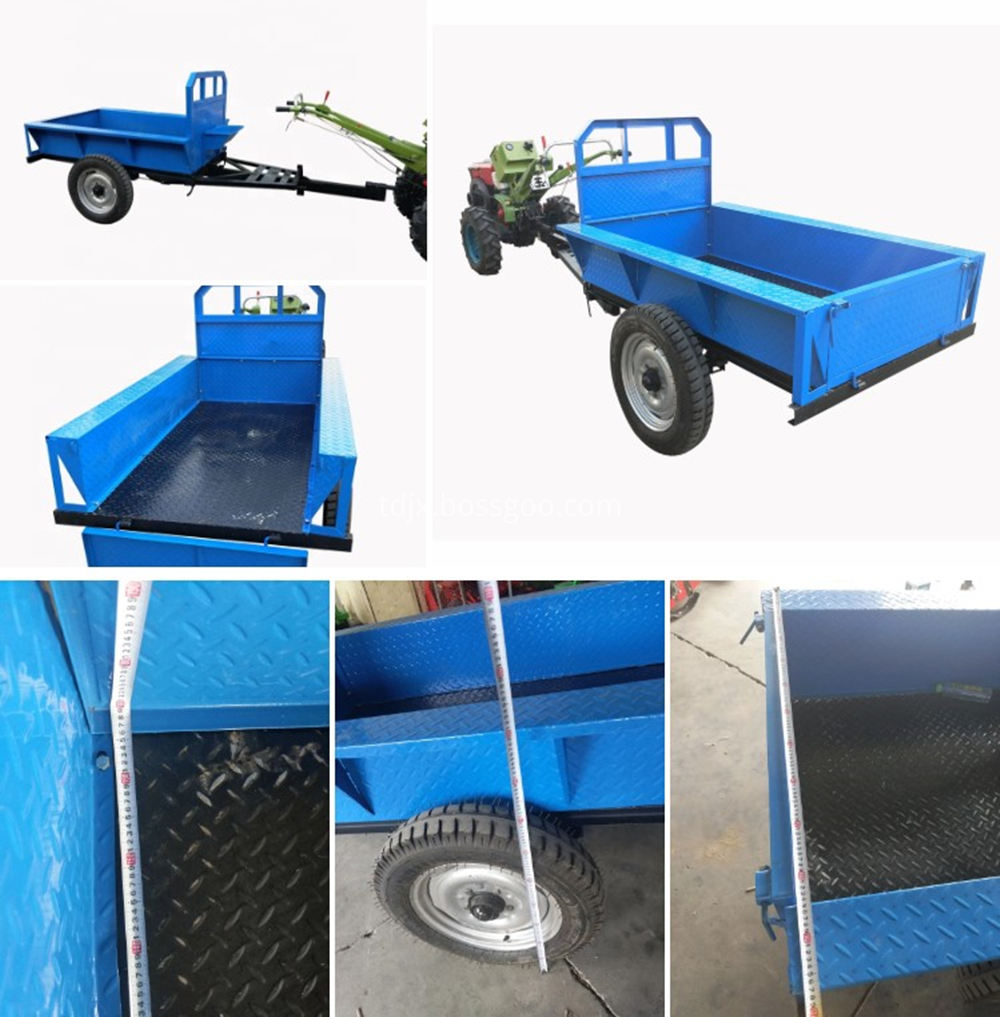

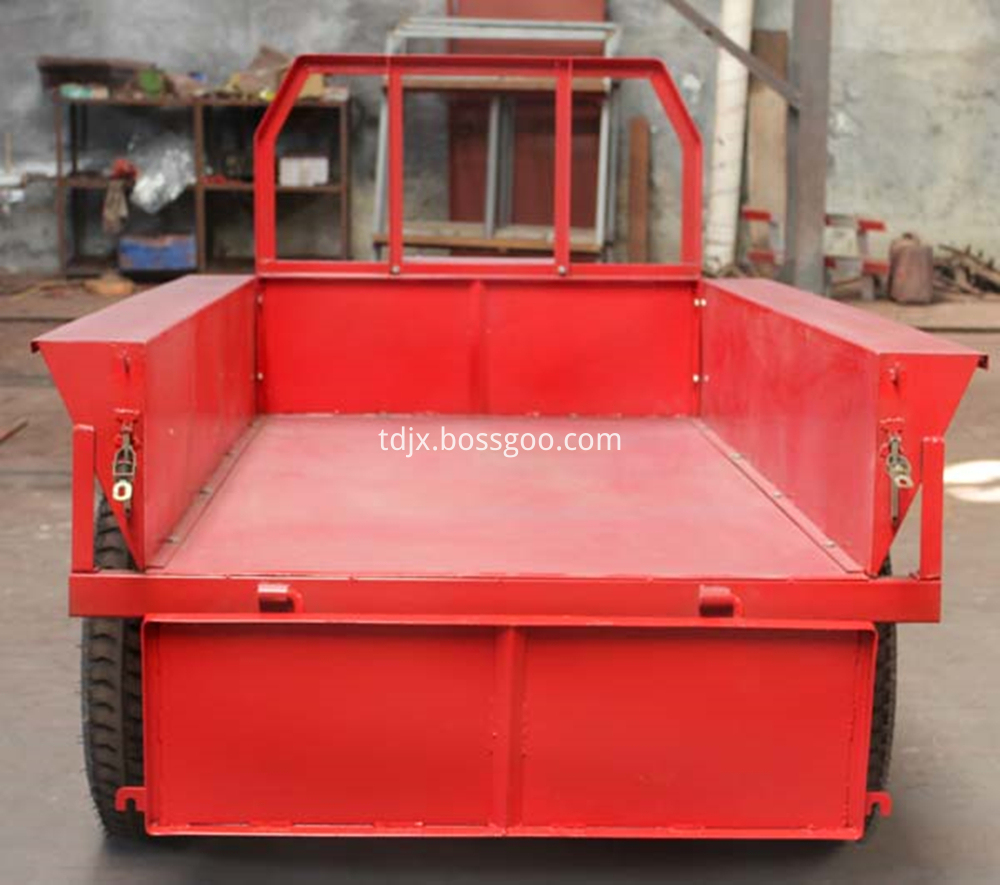

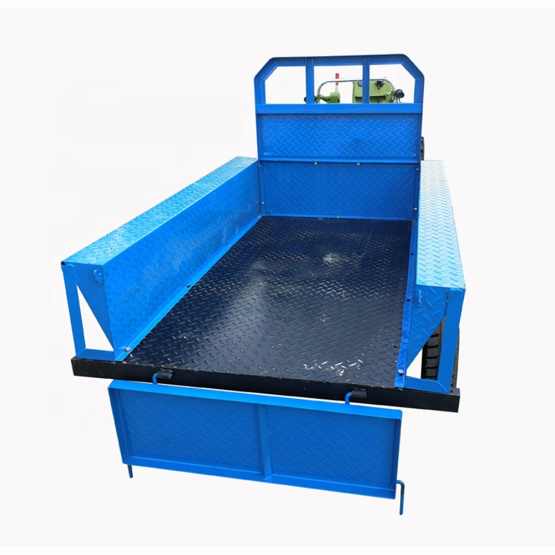

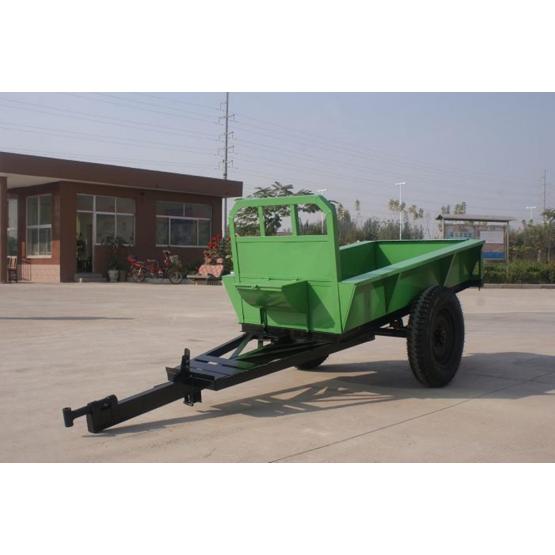

Two wheel small hand walking tractor trailer:

The 7C series two wheel small hand walking tractor trailer has various types. The product has reasonable structure, beautiful appearance, economic and durable and also can match various types of tractors. It is a new item of trailer for walking tractor, with huge capacity, compact structure and good-looking shape, reasonable and smart design, is welcomed by the customers. The trailer can be well matched with different sorts of walking tractor and easy to be handled by driver. This tractor mounted hydraulic four wheel trailer has a wide range of series. It also can be made according client's requirements, the following parameters table is only for reference.

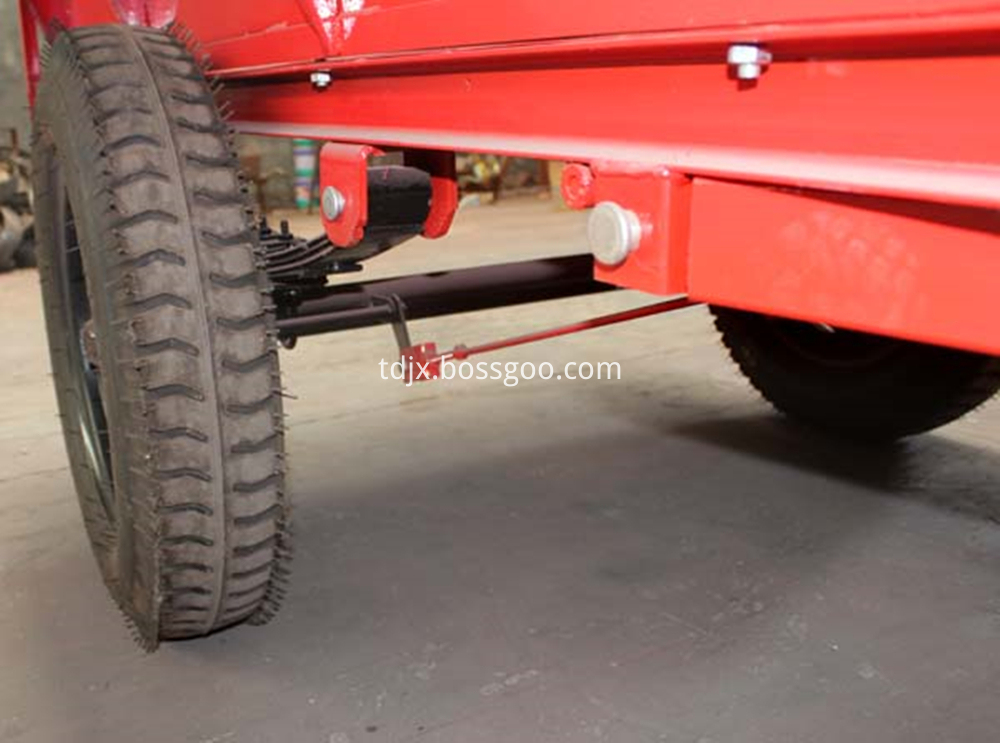

The walking tractor tipping dump trailer is used for road and field transportation. It`s convenient to maintain and durable in use. The form of damping is leaf spring, the form of traction is tripod traction. The hand tractor dump trailer is derusting with large shot blast machine, to change welding stress.

Parameters of automatic hand tractor tipping trailer:

1. Model: 7C-1.5H

2. Matched Tractor: 10~20 hp

3. Drawbar pin hole: Φ20 mm

4. Loading size: 2000×1000×400

5. Loading capacity: 1500~1800 kg

6. Tire size / qty: 900-16 / 4

7. Weight: 260 kg

8. Brake forms: mechanical, impact or air brake or choose hydraulic pressure dump

Features of walking tractor farm trailer:

1. All standard parts are 8.8 grade and coloured. The bolt for box plate is galvanized and the bottom plate is self-locking nut.

2. Beautiful weld, uniform length and uniform, no welding spatter, leakage, false welding.

3. Trailer parts are uniform in size and interchangeable (such as front and back boxes). Adding B-pin or open pin can prevent the box board from sliding when it opens.

4. Trailer leg height is adjustable and firm.

5. Sandblasting before spraying. Paint adopts two-component polyurethane composition, baking process, high brightness, sun resistance, rain resistance, strong ultraviolet ray resistance.

Applications of farm trailer with seat:
