Basic Info

Model No.: 2BMYFQ-4D

Application: Corn, Peanut, Beans

Application Field: Agriculture

Function: Dual Seeding and Fertilization

Planting Machine Type: Seedling Planting Machine

Fertilizing Machine Type: Pneumatic Wide Fertilizer

Power Source: Tractor

Mechanization: Automatic Planting Machine

Ditching Mode: Continuous Ditching

Sowing: Precision Seeder

Certification: CE, ISO9001:2008, SGS, GMP, QS, UL

Condition: New

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

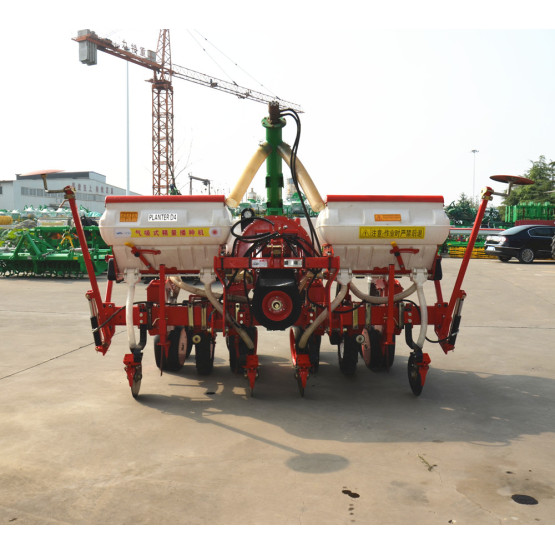

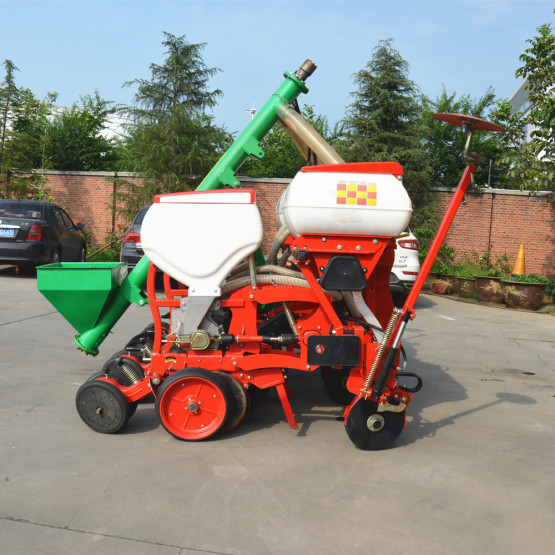

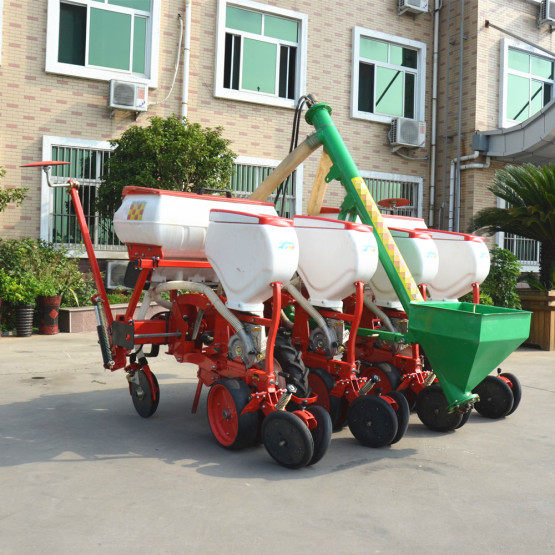

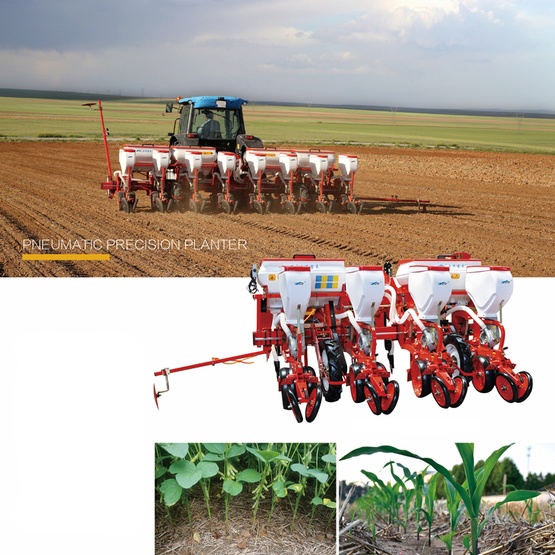

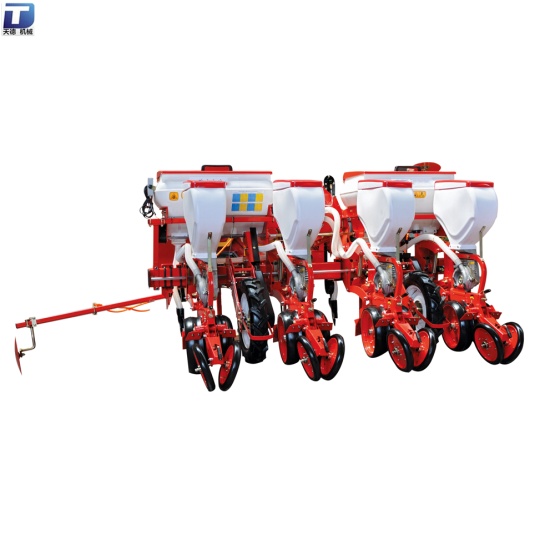

Pneumatic precision planter:

pneumatic precision planter can accomplish the ditching, fertilizing, stubble breaking, sowing, ridging task, ect. in one operation .

The air suction seeder for precision seeding of corn, soybeans, sorghum, sugar beet, and other crops. Sowing and fertilizing simultaneously with good efficiency and high germination rate. This vacuum precision planter has an efficient operating speed of 4-8 km/h.

It is the perfect planter to solve the problems of modern agriculture in which maximum efficiency must be combined with minimum cost.

Parameters of pneumatic precision planter:

1. Model: 2BMYFQ-4D

2. Dimension: 2000X3000X1800 mm

3. Weight: 1000 kg

4. Matched Tractor: 60~80 hp

5. Working width: 140~320 cm

6. Planting rows/fertilizing rows: 4/4

7. Row spacing: 40~70 cm

8. Working depth: 0~100 mm

9.  Fertilizer hopper capacity: 2X160 kg

10. Seed hopper capacity: 4X40 L

11. Plant space adjustment type: Double chain sprocket adjustment

12.  Fertilizer opener type: Single disc type

13. Seeding opener form: Double disc type

14. Linkage: Three-point mounted

15. Optimum operating speed: 4~8 km/h

16. Work efficiency: 1~2 hm²/h

Features of pneumatic precision planter:

1* 40 L Seed Hopper

2* Singulator lever for adjusting supply of seeds in the selection chamber

3* High strength aluminium case

4* Seeding depth adjustment

5* Support depth wheels with the balance system allowing perfect copy of uneven ground which provides a constant seeding depth

6* V shaped rear roller for pressing down and closing seed beds

7* Disc type coulter

8* Ripple shaped trash remover

9* Sowing monomer quick release system

10* Quick-release cardan drive with acoustic warning

11* Self lubrication bushing

12* Coulter pressure adjustment by handle attached to spring

13* Seed meter is easy to open or close and seed disc is convenient to replace

Applications of pneumatic precision planter:
