Basic Info

Model No.: 1GKNB-200

Type: Rotary Tiller

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Soil Preparation Machinery

Drive Type: Gear Drive

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Usage: Farm Cultivate

Color: Green

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Name: Agricultural Equipment Rotavator

Key Word: Multi-speed Rotary Tiller

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

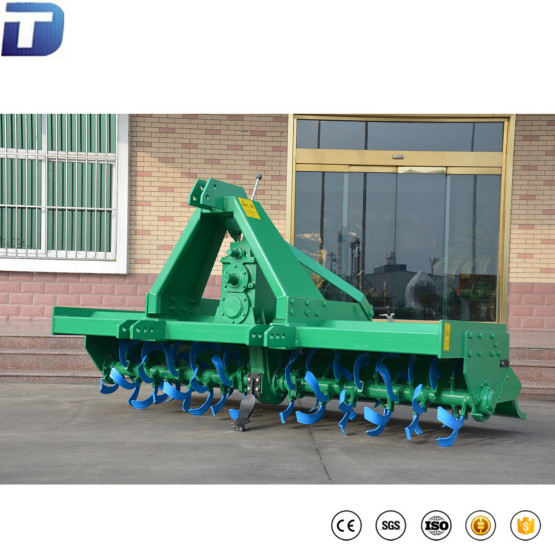

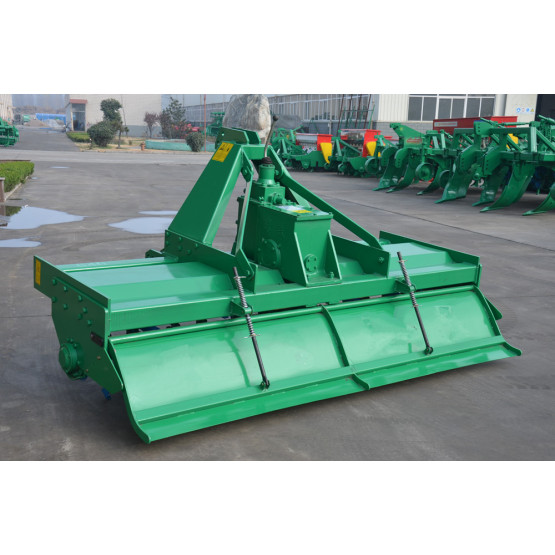

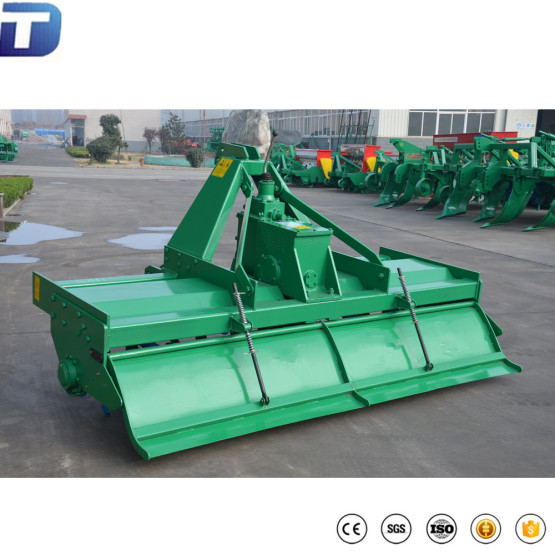

Soil tillage varying speed 3-point rotary tiller rotavator

The farming tillage machine cultivator gearbox deep roravator is equipped with a medium size gearbox and a large modulus high-strength gear, which makes the PTO output of the tractor and the power input of the rotary tiller horizontal, which greatly prolongs the service life of the universal shaft. The new integrated suspension makes the whole machine more securely hooked, and the new bearing housing improves sealing performance. This series of cheap 3 point rotary tiller can be equipped with special deep-cultivating knives and extended rotary cultivators. Under effective conditions, the pto tillers rotary tiller working depth is 8~18 cm, which is the ideal choice for your higher requirements for soil preparing.

The multi-speed gearbox series tractor pto rotary tiller adopt varying speed gearbox, five module gear transmission, matched with 100hp tractors, working width is 200-280cm, the machine is light and durable, it is the first choice for small farm land.

Parameters of varying speed 3-point rotary tiller rotavator:

1. Model: 1GQN-200

2. Dimension: 1347X2232X1410 mm

3. Weight: 830 kg

4. Matched Tractor: ≥100 hp

5. Working depth: 8~18 cm

6. Working width: 200 cm

7. Qty of rotary blade: 56

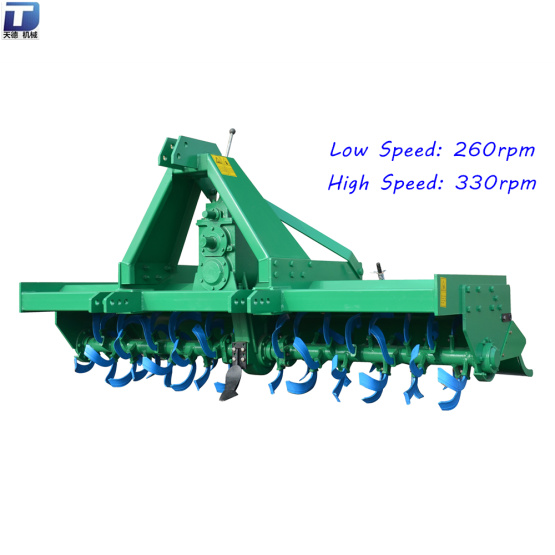

8. Gear speed ratio: low speed 260 rpm; high speed 330 rpm

9. Linkage: Three-point mounted

Features of varying speed 3-point rotary tiller rotavator:

1. Standard 3 point suspension is suitable for all kinds of power tractors.

2. Thickened ball iron gearbox. Use the new integrated suspension to make machine hang more firmly.

3. The rotavator can replaceable multi-form cutter shaft.

4. The gearbox has four holes in the front and rear, and adopt anti-receding bolt to fix.

5. The rotary tiller has new type bearing block and especial deep rotary blades.

6. Rotary tiller machines working deep: 8--18cm.

7. Enhance gearbox and inside with big modulus high strength gear, make tractors PTO output and the rotary cultivator in level state,  greatly extend the service life of the universal drive shaft.

8. The rotary tiller can equip with special deep tillage knife shaft and lengthened rotary tillage knife .

Applications of varying speed 3-point rotary tiller rotavator:
