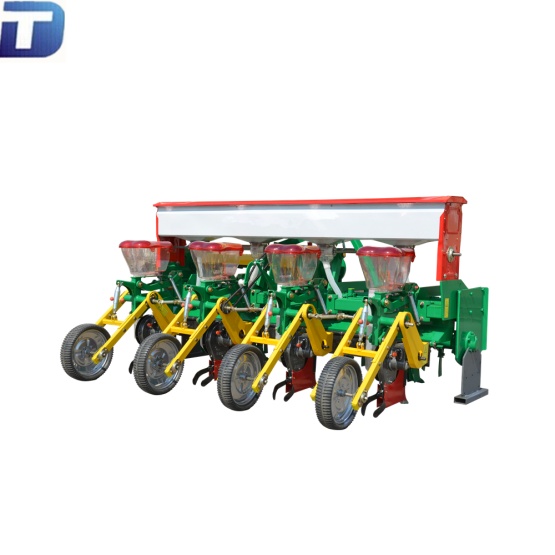

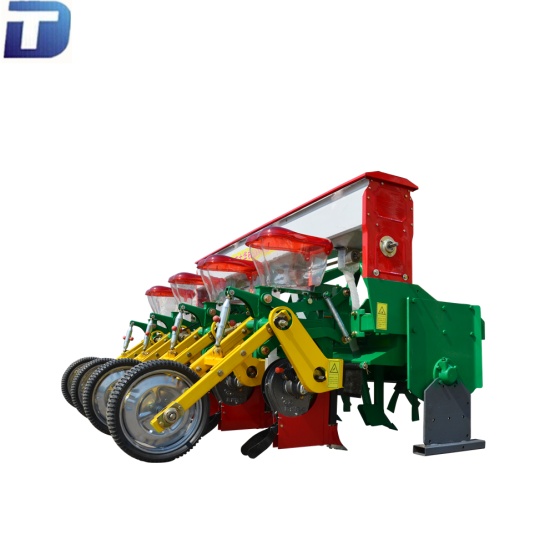

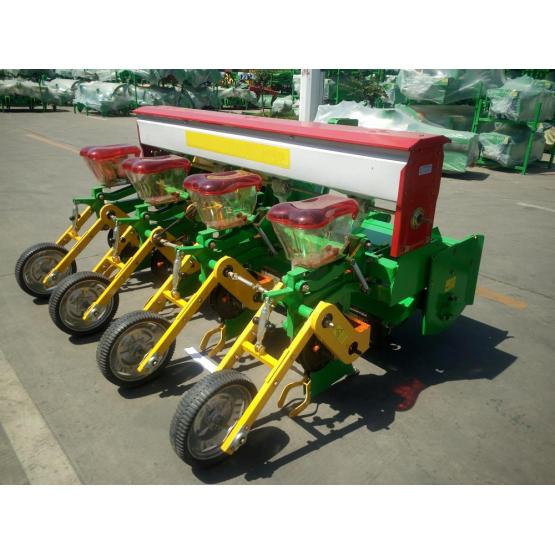

No tillage 3 point hitch seeder with fertilizer
Model No.: 2BMYFC-3
Power Source: Tractor
Mechanization: Automatic Planting Machine
Ditching Mode: Continuous Ditching
Sowing: Precision Seeder
Certification: CE, ISO9001:2008, SGS, GMP, QS, UL
Name: Farm Planter
Function: Cleaning-stubble ,fertilizing , Seeder
Working Efficiency: High Efficiency
Packing: Iron Cage
Advantage: High Performance
Warranty: 12 Months
Working Width: 1800~2400mm
Packaging: Strong exporting standard packages. Iron frame ( As your requirements )
Productivity: 1000 set/sets per month
Place of Origin: China (Mainland)
Supply Ability: 1000 set/sets per month
Mechanical precision planter:
mechanical precision corn fertilizer seeders machine is matched with tractor with more than 65 horsepower, one operation can complete stubble cleaning, fertilization, precision sowing and compaction and other processes.
The farm seed planter adopt driving rotary type cleaning device , can effectively remove straw and stubble , which provide a good seedbeds for seeding and solve the problem of trench opener entanglement congestion .
The maize planter equipped with finger-clip seed metering device to ensure sowing precision and efficient operation of the unit.
Parameters of mechanical precision planter:
1. Model: 2BMYFC-3
2. Dimension: 2250X2050X1250 mm
3. Weight: 510 kg
4. Matched Tractor: 50~80 hp
5. Working width: 180 cm
6. Planting rows/fertilizing rows: 3/3
7. Row spacing: 40~70 cm
8. Seed metering device type: finger-clip type
Features of mechanical precision planter:
1 . The maize planter with fertilizer adopt vertical rotary blade to clear straw and stubble , which avoid soil moisture loss caused by soil disturbance .
2 . The maize seed planter using large mould side box transmission, high speed operation is more stable, large diameter cutter shaft cleaning effect is better .
3 . The sowing legs and pressing wheels are equipped with the latest independent copying mechanism, which is free to adjust and adapt to a variety of operating environments .
4 . The no-till seeder equipped with pinch-type precision seed metering device to improve the sowing precision, the operating speed can be 5~7 km/h when the operating conditions be allow.
Applications of mechanical precision planter:
