Basic Info

Model No.: 2BFJ-25

Power Source: Tractor

Mechanization: Automatic Planting Machine

Ditching Mode: Continuous Ditching

Sowing: Precision Seeder

Certification: CE, ISO9001:2008, SGS, GMP, QS, UL

Condition: New

Name: Seed Drill

Function: Fertilizing , Seeder

Keyword: Seeder

Working Efficiency: High Efficiency

Row Spacing: 25/30 Cm

Working Width: 2000~3000mm

MOQ: 1sets

Packing: Iron Cage

Advantage: High Performance

Feature: Multi-functional

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

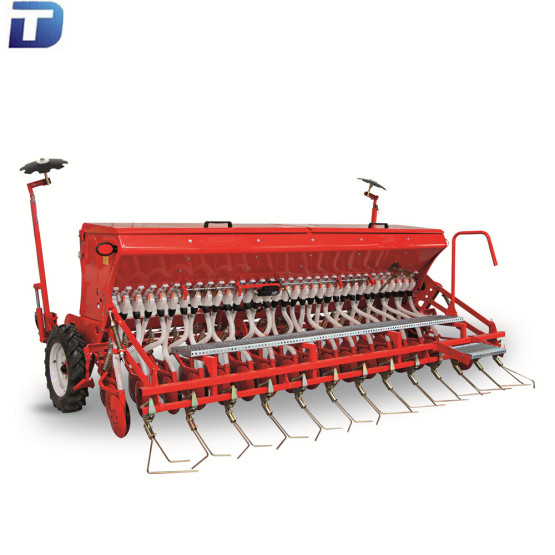

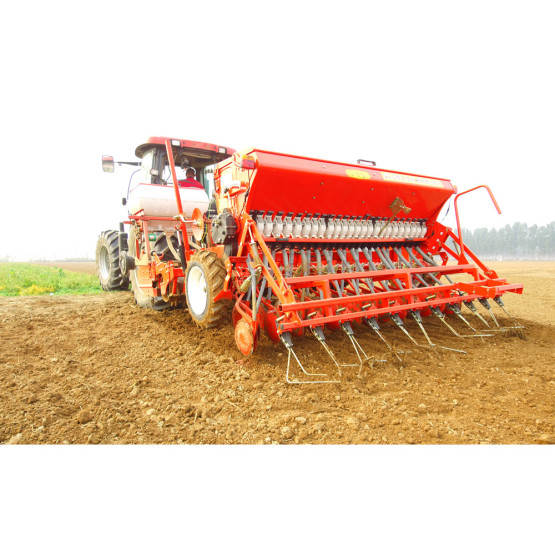

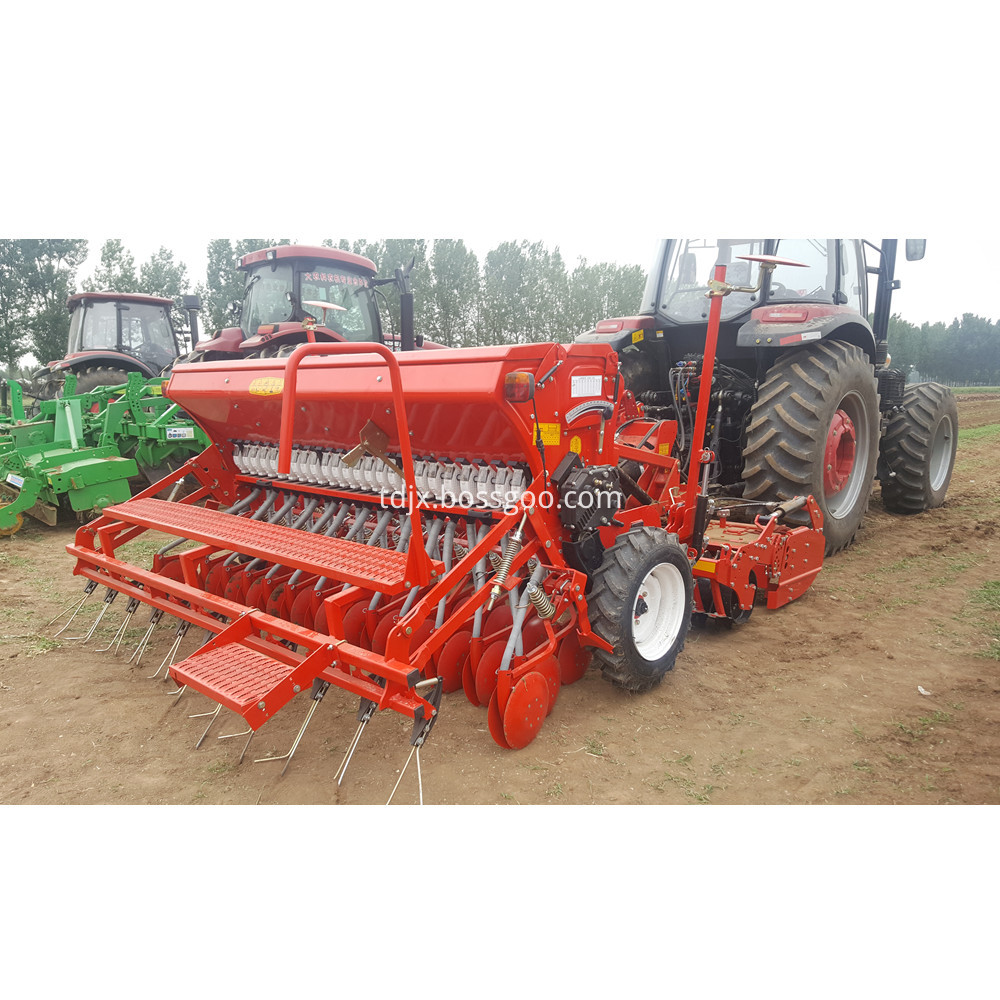

Disc seed drill planter:

Tractor mounted grain drill planter is a multifunctional mechanical precision drill planter, equipped with mufti-function seed-metering wheel and seeds regulator, through sliding plate segmentation can achieve a variety of different size grains precisely planting ,such as wheat, barley, rape and so on, and achieve 0.5-450 kg/hectare stepless adjustment . According to soil condition, optional is chisel type or disc opener, its elastic shape design to ensure the consistency of sowing depth.

Parameters of disc seed drill planter:

1. Model: 2BFJ-25

2. Dimension: 2325X31500X1640 mm

3. Weight: 950 kg

4. Matched Tractor: 90~120 hp

5. Working width: 300 cm

6. Planting rows/fertilizing rows: 25/25

7. Row spacing: 12 cm

8. Working depth: 0~40 mm

9.  Fertilizer hopper capacity: 450 L

10. Seed hopper capacity: 780 L

11. Seeding opener form: Double disc type

12. Linkage: Three-point mounted

Features of disc seed drill planter:

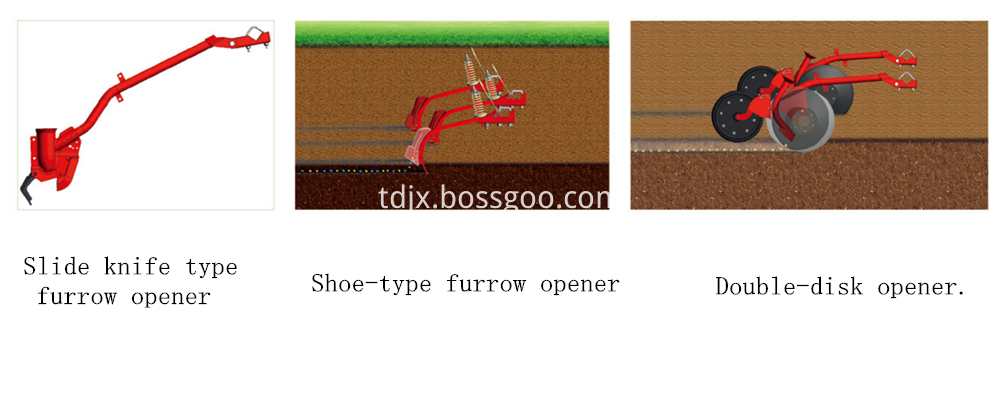

1* Slide knife type furrow opener

2* Shoe type furrow opener

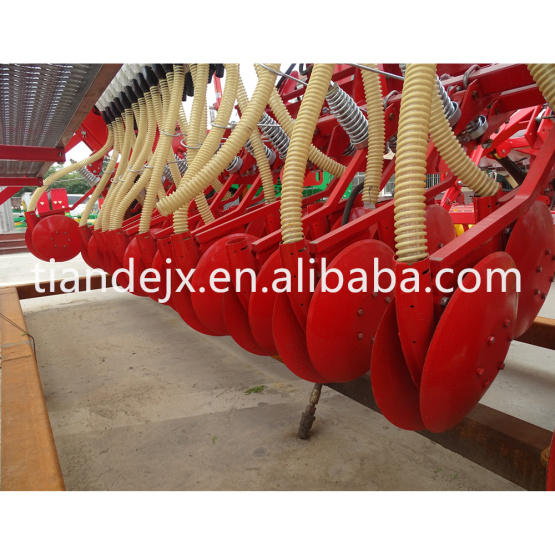

3* Double disc opener

4* Seeding depth adjustment

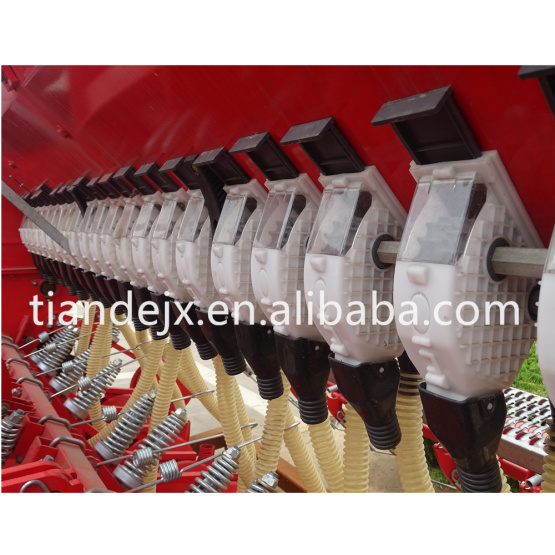

5* Seed meter is easy to open or close and seed disc is convenient to replace

Applications of disc seed drill planter:
