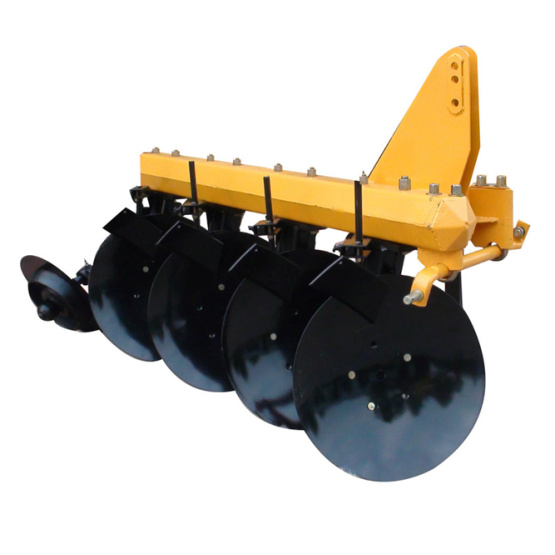

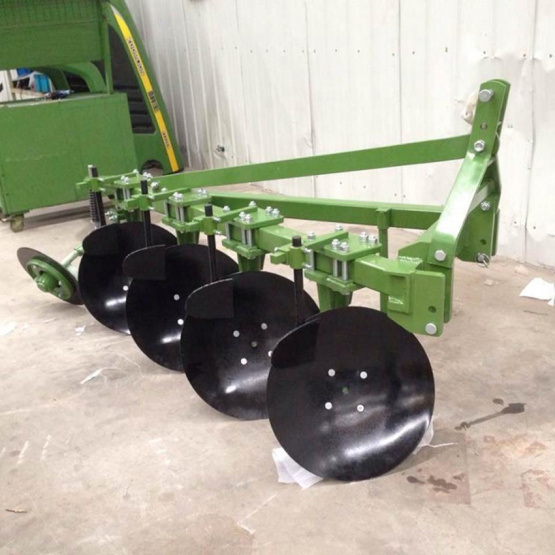

Four Disc Blade High Quality DIsc Plough
Model No.: 1LYQ-420
Type: Disc Plough
Application Field: Agriculture
Power Source: Tractor
Machinery Type: Arable Machinery
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Certification: SGS, ECE, EU, CE
Operation: Continuous Running Operation
Working Efficiency: High Efficiency
Packing: Iron Cage
Application: Agricultural Cultivator
Advantage: Flexible Operation
Feature: Match Tractor
Usage: Ploughing Soil
Drive Type: Match Tractor
Name: Disc Rotary Plough With Scraper
Packaging: Strong exporting standard packages. Iron frame ( As your requirements )
Productivity: 1000 set/sets per month
Place of Origin: China (Mainland)
Supply Ability: 1000 set/sets per month
Farm land used disc plough with scraper:
Farm land used massey ferguson scraper disc plough, reasonable structure, strong rigidity, high quality material, elegant appearance, save time and fuel, high efficient. Equip with small complex plough, the rotary plough with scraper can be used to cut field surface vegetation, which facilitates the straw and seeds by deep cover to fertile field, stable traction, well-cultivated, meet the requirements of agronomy and agricultural operation.
This 1LY four disc plough with scraper blade is mounted with four wheel tractor,as in conformity with the current agriculture conditions, are being produced with 2-3-4-5 rows.
Parameters of farm tractor disc plow:
1. Model: 1LYQ-420
2. Dimension: 1790X790X1100 mm
3. Weight: 290 kg
4. Matched Tractor: 40~60 hp
5. Working depth: 20 cm
6. Working width: 80 cm
7. No. of disc: 4
8. Linkage: Three-point mounted
9. Disc diameter: 510 mm
Features of farm tractor disc plow:
1. High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade.
2. This 1LY disc plough,disk plow,is mounted with four wheel tractor,as in conformity with the current agriculture conditions,are being produced with 2-3-4-5 rows.
3. The disc plough Matchable with tractor, it furrow soil when patches rotate, mainly applicable for complex land,such as weedy land, heavy soil, farmland with bricks and stones, etc.
4. Effectively avoid the plow disc is grass wrapped, not obstruction, can cut off stem of crop and overcome bricks and stones,with high efficiency,good quality work, easy to adjust, simple to use, durable, etc.
5. The disc ploughs are used to open the new fields and to process the stony areas.
Applications of farm tractor disc plow:
