farm machine deep loosening soil subsoiler
Model No.: 1S-360
Application Field: Agriculture
Power Source: Tractor
Machinery Type: Arable Machinery
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Certification: SGS, ECE, EU, CE
Operation: Continuous Running Operation
Working Efficiency: High Efficiency
Application: Agricultural Cultivator
Advantage: Flexible Operation
Feature: Match Tractor
Drive Type: Match Tractor
Name: Soil Cultivating Machine
Packing: Iron Frame Package
Usage: Loosening Soil
Packaging: Strong exporting standard packages. Iron frame ( As your requirements )
Productivity: 1000 set/sets per month
Place of Origin: China (Mainland)
Supply Ability: 1000 set/sets per month

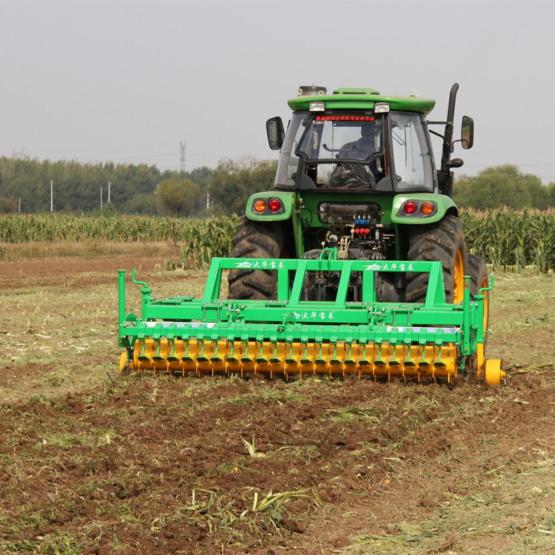

Multifunctional inter-row subsoiler plough cultivator:
The farm machine deep loosening soil subsoiler deep loose shovel adopts the special curved inverted trapezoidal design, which does not intermingle the soil layer during operation, and does not turn over the soil. After loosening the soil, the surface is smooth, maintaining the integrity of the vegetation. After heavy-duty roller presses to suppress the soil and improve the preservation effect, the soil loss can be minimized, which is more conducive to no-tillage sowing.
The tractor three point linkage subsoiler cultivator high-gap reinforcement shovel seat and the three-row beam frame structure can be applied to soils with different textures and a large amount of straw covering to avoid clogging and improve the passability of the implement. The single shovel can adjust the line spacing within 20 cm. According to the supporting power, there are also three kinds of deep shovel, small, medium and large, with a working depth of 25-50 cm.
Parameters of multifunctional inter-row subsoiler plough cultivator:
1. Model: 1S-360
2. Dimension: 2110×4470×1520
3. Matched Tractor: 150~180 hp
4. Working depth: 25~50 cm
5. Working width: 360 cm
6. Shovel space: 80 cm
7. Working efficiency: 3.1~4.1 hm2/h
8. Linkage: Three-point mounted
9. Weight: 1460 kg
Features of multifunctional inter-row subsoiler plough cultivator:
1. Multi-cambered surface subsoiling shovel, break plow sole, only loosening soil all around, but not turning over. Working depth can reach to 25~65 cm.
2. Rainy season: enhance soil water storage and waterlodding capability.
3. Dry season: ground flate, vegetation coverage well, upper real lower virtual, improve drought resistance capability.
4. Increase soil permeability, make the root systerm more developed and increase production income.
5. Three bean frame design is easy to adjust line spacing.
6. Widening frame design is to prevent congestion and improve the crossing efficiency.
7. Novel mud scraping plate combination is to ensure the quality of repression.
8. Corrugated suppression roller.
Applications of multifunctional inter-row subsoiler plough cultivator:
