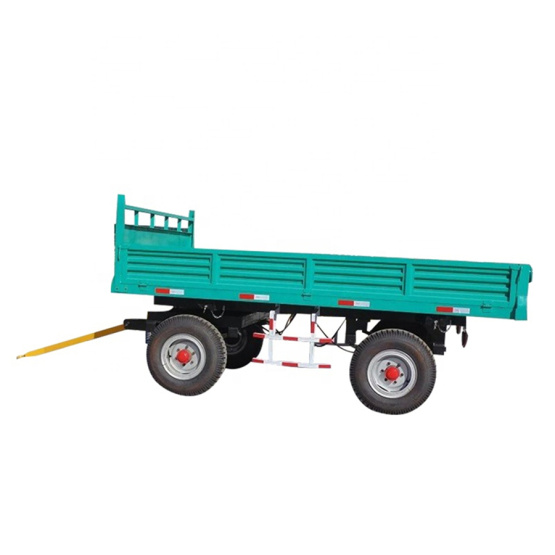

8 ton agriculture farm tractor dump trailer
Model No.: 7CX-8T
Working Efficiency: High Efficiency
Advantage: Flexible Operation
Drive Type: Match Tractor
Packing: Iron Frame Package
Feature: Higher Performace
Application: Farm dump trailer
Usage: Farm trailer For Transportation
Name: Four Wheel Farm Tipper Trailer
Packaging: Strong exporting standard packages. Iron frame ( As your requirements )
Productivity: 1000 set/sets per month
Place of Origin: China (Mainland)
Supply Ability: 1000 set/sets per month
Rear Tipping Mechanic Brake Tractor Trailer:
The 7CX series 8 ton agriculture farm tractor dump trailer has various types form 0.5T-8T. The product has reasonable structure; beautiful appearance, economic and durable and also can match various types of tractors, it is divided into many kinds of types: single axle of two wheel trailer, double axles of four wheel trailer, hydraulic dump or no-hydraulic dump. The four wheel double axle farm trailer also can be made according client's requirements, the following parameters table is only for reference.
The strong construct tractor 4 wheel farm trailers is used for road and field transportation. It`s convenient to maintain and durable in use. The form of damping is leaf spring, the form of traction is tripod traction. The double axle dump trailer is derusting with large shot blast machine, to change welding stress.
Parameters of rear tipping mechanic brake tractor trailer:
1. Model: 7CX-8T
2. Matched Tractor: 60~120 hp
3. Outside Dimension: 4500×2300×1140
4. Loading size: 4300×2000×500
5. Loading capacity: 8 ton
6. Tire size / qty: 900-20 / 4
7. Weight: 1500 kg
8. Brake forms: mechanical, impact or air brake or choose hydraulic pressure dump
Features of four wheel farm trailer:
1. All standard parts are 8.8 grade and coloured. The bolt for box plate is galvanized and the bottom plate is self-locking nut.
2. Beautiful weld, uniform length and uniform, no welding spatter, leakage, false welding.
3. Trailer parts are uniform in size and interchangeable (such as front and back boxes). Adding B-pin or open pin can prevent the box board from sliding when it opens.
4. Trailer leg height is adjustable and firm.
5. Sandblasting before spraying. Paint adopts two-component polyurethane composition, baking process, high brightness, sun resistance, rain resistance, strong ultraviolet ray resistance.
Applications of double axle farm tipper trailer:
