3-point suspension deep subsoiling with parts

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 5-15 Days

Basic Info


Model No.: 1S-250

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Arable Machinery

Traction Type: Hanging

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Operation: Continuous Running Operation

Working Efficiency: High Efficiency

MOQ: 1sets

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Drive Type: Match Tractor

Color: Customized

Name: Soil Cultivating Machine

Packing: Iron Frame Package

Usage: Loosening Soil


Additional Info


Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai


Product Description

Multifunctional inter-row subsoiler plough cultivator:

The 3-point suspension deep subsoiling with parts deep loose shovel adopts the special curved inverted trapezoidal design, which does not intermingle the soil layer during operation, and does not turn over the soil. After loosening the soil, the surface is smooth, maintaining the integrity of the vegetation. After heavy-duty roller presses to suppress the soil and improve the preservation effect, the soil loss can be minimized, which is more conducive to no-tillage sowing.

The multifunctional inter-row subsoiler plough cultivator high-gap reinforcement shovel seat and the three-row beam frame structure can be applied to soils with different textures and a large amount of straw covering to avoid clogging and improve the passability of the implement. The single shovel can adjust the line spacing within 20 cm. According to the supporting power, there are also three kinds of deep shovel, small, medium and large, with a working depth of 25-50 cm.


Parameters of multifunctional inter-row subsoiler plough cultivator:

1. Model: 1S-250

2. Dimension: 2110×2600×1520

3. Matched Tractor: 120~150 hp

4. Working depth: 25~50 cm

5. Working width: 250 cm

6. Shovel space: 80 cm

7. Working efficiency: 2.6~3.4 hm2/h

8. Linkage: Three-point mounted

9. Weight: 1120 kg


Features of multifunctional inter-row subsoiler plough cultivator:

3 point subsoiler

subsoiler deep

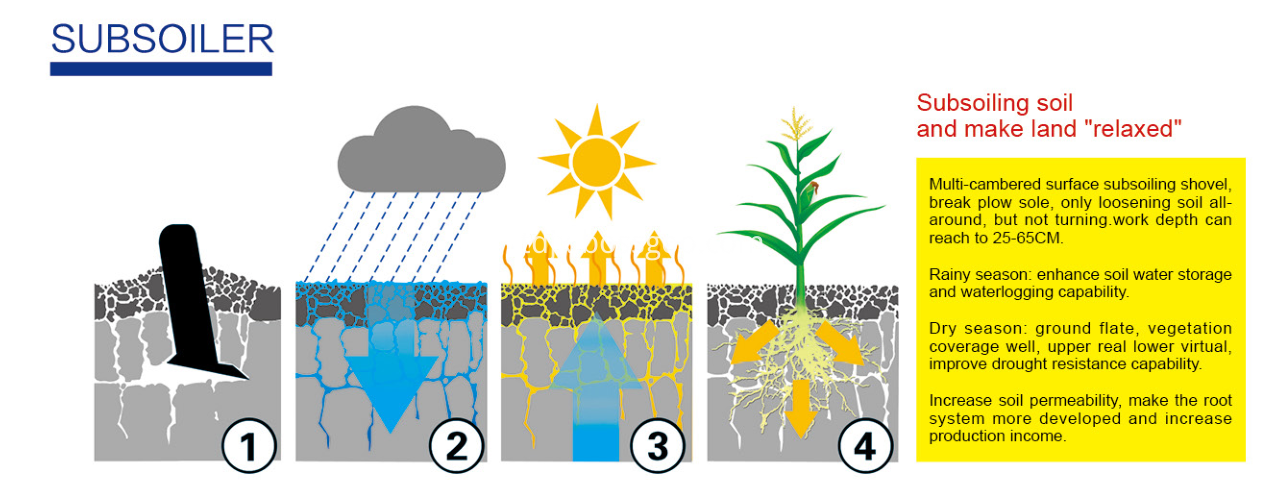

1. Multi-cambered surface subsoiling shovel, break plow sole, only loosening soil all around, but not turning over. Working depth can reach to 25~65 cm.

2. Rainy season: enhance soil water storage and waterlodding capability.

3. Dry season: ground flate, vegetation coverage well, upper real lower virtual, improve drought resistance capability.

4. Increase soil permeability, make the root systerm more developed and increase production income.

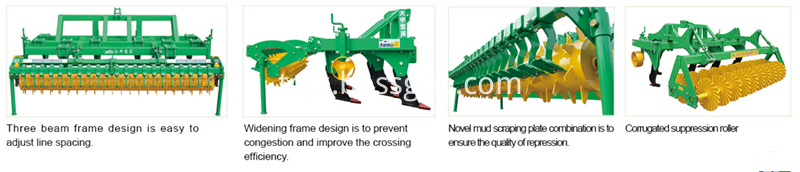

5. Three bean frame design is easy to adjust line spacing.

6. Widening frame design is to prevent congestion and improve the crossing efficiency.

7. Novel mud scraping plate combination is to ensure the quality of repression.

8. Corrugated suppression roller.


Applications of multifunctional inter-row subsoiler plough cultivator:
